QDC10 PLCmultiplex transceiver |
| |
 |
SSI Over Powerline Transceiver-QDC10
The QDC10 is a VLSI device for data communication over noisy DC power lines, which therefore eliminates complex wiring and provide quick and simple installation. If required, the device can operate on a single wire bus. It is a complete solution for a multiplex network of commands and data between a wide range of modules in a vehicle such as climate control and temperature sensor, security detectors and immobilizers, audio components, remote operation buttons on the steering wheel, etc. The QDC10 is based on the DC-BUS technology. It comprises a modem, channel coder/decoder (ECC), communication controller to overcome the hostile environment on vehicle battery power lines. A sleep mode reduces the power consumption when there is no activity over the unique multiplexed network
|
|

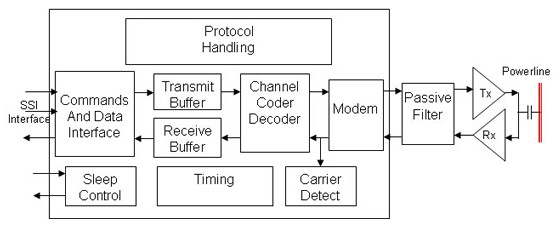

Functional Block Diagram |
Device Pinout |
 |
 |
|
|
| Features |
Applications |
|
Noise robust, 10Kbps communication over a battery power line.
Peer to Peer, up to 16 devices, 2-16 bytes packet message.
Low cost, flexible, eliminates complex cabling, saves Installation.
Opens new dimensions for car electronics design.
Sleep Mode for low power consumption.
|
Security systems.
Consumer electronics internal network.
Vehicle sub bus for doors, seats, mirrors, climate control, lights etc.
|
|
|
|
|
|
