SIG61 Independent Slave Over Powerline |
| |
 |
SIG61 - Powerline Independent Slave |
|
The SIG61 is an independent slave in a DC-BUS Powerline communication network controlled by a SIG60 master device. The device has 4 ID pins, 8 input pins and 8 output pins. Any data received from a remote SIG60 Master device is reflected to its output pins. The Master device can read the SIG61 input pins remotely. Its small footprint integrates most of the components needed for its operation allowing small size control solutions. The SIG61 is an economical slave device for applications as controlling motors, reading sensors etc., eliminating the need for dedicated control wires and a host controller for its operation. It reduces the harness size and increase reliability. A sleep mode enables power saving. Wakeup messages on DC line awaken remote devices. The SIG61 is useful for a wide range of Automotive, Avionics and Industrial applications such as sensor readings, actuator activation, doors, seats, mirrors, climate control, lights, Truck-Trailer, etc

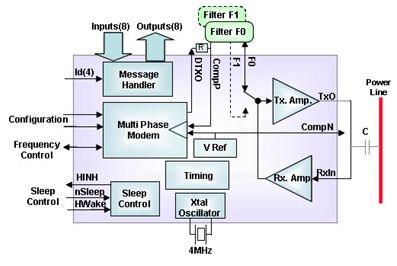

Functional Block Diagram |

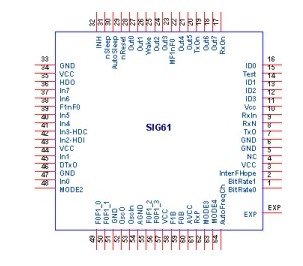

Device Pinout |
 |
 |
|
|
| Features |
Applications |
Noise robust UART / LIN over battery-powerline transceiver.
Seven selectable carrier frequencies.
Selectable bit rate between 9.6 Kbps to 115.2 Kbps.
8 general outputs and 8 general input pins.
Multiple networks may operate over the same powerline.
Eliminates data wires and transceiver.
Small footprint QFN 64 pin package
Sleep Mode for low power consumption. |
Consumer electronics internal network.
Avionics sensor - actuator bus.
Consumer electronics internal network.
Vehicle sub bus for doors, seats, mirrors,
climate control, lights etc.
Green cells energy management.
Front and back lights. |
|
|
|
|
|
