Cellular IoT Modules


ME910C1 Series/Product Features



**  LTE UE Category M1/NB1
** 3GPP release 13 compliant
** Half Duplex FDD
** Single Rx, single antenna
** 3GPP Rel. 12 Power Saving Mode (PSM)
** 3GPP Rel. 13 Extended Discontinuous Reception (eDRX)
** 3GPP Rel. 13 Extended coverage
**  Control via AT commands according to 3GPP TS27.005, 27.007 and customized AT commands
** SIM application Tool Kit 3GPP TS 51.01
**  SMS
**  IPv4/IPv6 stack with TCP and UDP protocol
**  OMA Lightweight M2M (LWM2M)
**  Over-the-Air firmware update
**  Telit Application Development Environment: AppZone C
**  SSL
**  Optional embedded GNSS (GPS, GLONASS, Beidou, Galileo)


Family Concept

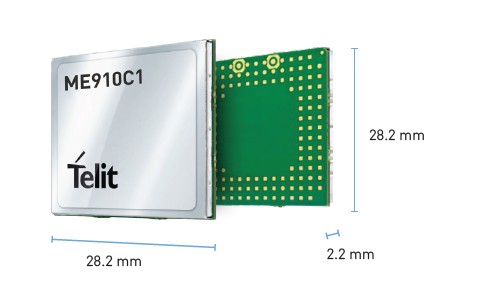

The ME910C1 is a member of Telit’s flagship xE910 module family delivering 4G radio access technology in the 28.2 x 28.2 x 2.2mm
family form factor. The Telit xE910 Unified Form Factor Family is comprised of 2G, 3G, and 4G that are 3GPP and 3GPP2 products
sharing a common form factor as well as electrical and programming interfaces which allows developers to implement a “design once,
use any-where” strategy.
